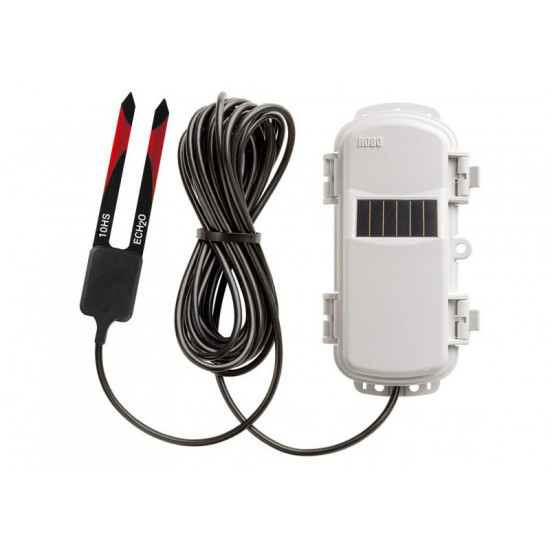

HOBOnet Soil Moisture 10HS Sensor

The HOBOnet Wireless Soil Moisture Sensor integrates the field-proven ECH2O™ 10HS Sensor and provides readings directly in volumetric water content. The 10cm probes measure soil moisture over a larger volume of soil, helping to average out any soil variability. The sensor's high-frequency design minimizes sensitivity to salinity and textural effects, and gives it a wide measurement range. HOBOnet Wireless Sensors communicate data directly to the RX3000 weather station or pass data through other wireless sensors back to the central station. They are preconfigured and ready to deploy, and data is accessed through HOBOlink, Onset’s innovative cloud-based software platform.

Highlighted Features

Sensor Features

• ±3% accuracy in typical soil conditions, and ±2% accuracy with soil-specific calibration
• Measures a large 1-liter volume of soil, providing a more accurate picture of average soil moisture
• High-frequency (70 MHz) circuit provides good accuracy even in high-salinity and sandy soils.

Wireless Features

• 900 MHz wireless mesh self-healing technology
• 450 to 600 meter wireless range and up to five hops
• Up to 50 wireless sensors per RX3000
• Simple button-push to join the HOBOnet wireless network
• Onboard memory to ensure no data loss
• Powered by rechargeable AA batteries and built-in solar panel

In what environment does this sensor operate?

This sensor operates in an outdoor environment.

What measurements does this sensor support?

The RXW-SMD-xxx sensor supports the following measurement: Soil Moisture
